Lightweight Fireproof Waterproof PVC Gypsum Ceiling Panel for Suspended Ceiling Systems

Nombre De La Marca:	SUNHOUSE
Número De Modelo:	TH0005
Cuota De Producción:	100
Precio:	$0.90-1.60

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

Cantón, China

Garantía:

1 año

Servicio postventa:

Soporte técnico en línea, inspección in situ, recambios libres

Capacidad de solución de proyectos:

diseño gráfico, diseño de modelos 3D, solución total para proyectos.

Solicitud:

Techo del hotel, de Oiffer y decoración de Interion/hotel

estilo de diseño:

Moderno

Función:

Incombustible, aislamiento de calor, a prueba de humedad, Molde-prueba, Humo-prueba, fonoabsorbente,

Característica:

Techos artísticos, techos del panal, techos integrados, techos perforados

Forma de baldosa de techo:

Rectángulo

Tipo de mosaico de techo:

Los techos de PVC

Tamaño:

595x595m m, 600x600m m, 603x603m m, 605x605m m

Espesor:

7m m, 7.8m m, 8m m, 9m m…

Borde:

Borde cuadrado con la cinta o sin la cinta

Densidad:

280~350 kg/m3

Materias primas:

Panel de yeso

Superficie:

Película importada o nacional del PVC

Certificado:

ISSO/CE disponible

Cantidad mínima de pedido:

Contenedor de 1*20GP

Muestra gratis:

Disponible en cualquier momento

peso:

Ligero

Material:

Pvc y yeso

Palabra clave:

Techo del yeso del PVC

palabra clave:

Tablero del techo del Pvc

Centro:

Panel de yeso

Color:

Blanco (personalizable)

Tipo de montaje:

Caiga adentro

Método de instalación:

sistema del techo suspendido

Resistencia al agua:

Impermeable

Descripción de producto

PVC Laminated Gypsum Ceiling Panels – 595×595 mm Suspended Ceiling Tiles

PVC laminated gypsum ceiling panels are composite building materials consisting of a gypsum core with a factory-applied PVC film surface layer. They are designed for use in exposed grid suspended ceiling systems, providing a balance of dimensional stability, surface durability, and functional performance in controlled indoor environments.

Technical Specifications

Parameter	Specification
Standard Dimensions	595 × 595 mm, 600 × 600 mm, 603 × 603 mm, 605 × 605 mm
Thickness Range	7.0 mm, 7.8 mm, 8.0 mm, 9.0 mm
Edge Type	Square edge (with or without reinforcing tape)
Core Density	280 – 350 kg/m³
Core Material	Gypsum board with stabilizing additives
Surface Finish	PVC film lamination (matte, satin or embossed texture available)
Performance Characteristics	Moisture resistance, wipe-clean surface, moderate fire retardancy, basic sound absorption (perforated options)
Surface Patterns	Plain, perforated, sand texture, geometric, simulated wood grain
Grid System Compatibility	Standard 15 mm or 24 mm exposed T-bar grid
Primary Applications	Commercial offices, hotels, hospitals, schools, retail premises and light industrial interiors

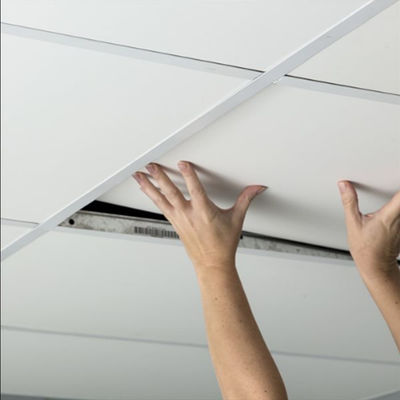

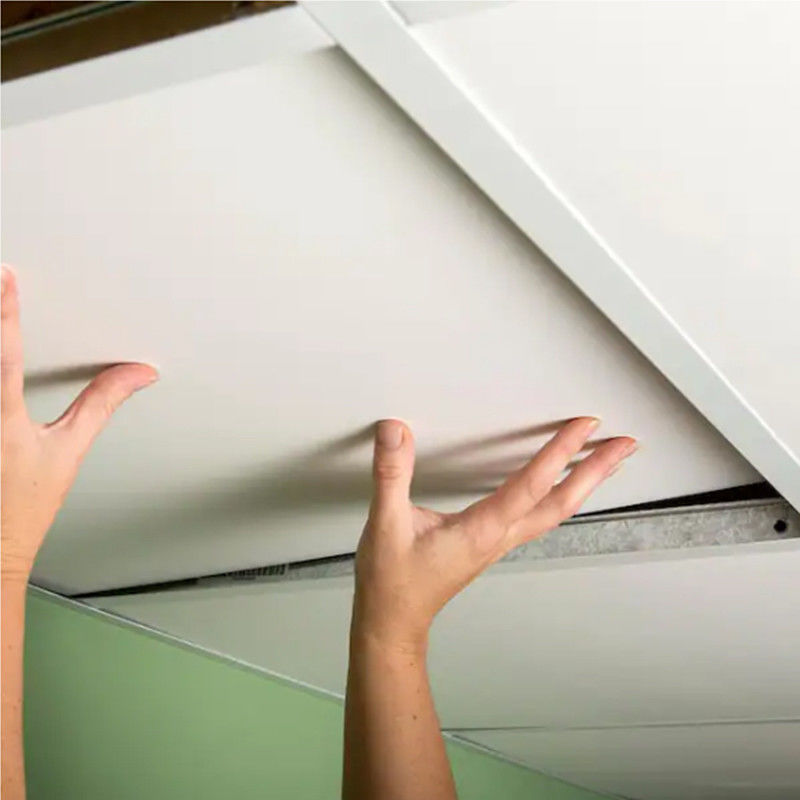

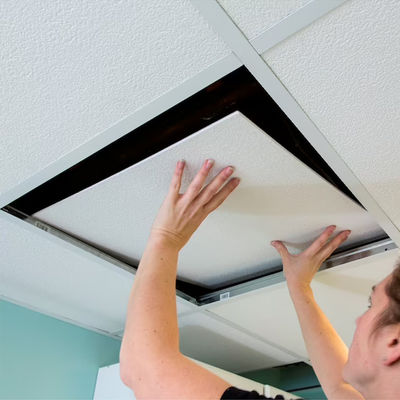

Installation and Handling Guidelines

Technical Notes for Proper Use:

• Panels must be stored flat on a level surface in a dry, ventilated warehouse with relative humidity below 85%. Maximum safe stacking height is 8–10 panels.
• Allow panels to acclimatize to the installation environment for at least 24 hours prior to fixing.
• Installation temperature range: 5°C to 40°C. Avoid installation in areas with sustained humidity exceeding 90%.
• When cutting, use a fine-tooth hand saw or scoring knife. Appropriate personal protective equipment (dust mask, safety glasses) is recommended to control gypsum dust.
• The supporting T-bar grid must be installed level and rigidly fixed according to manufacturer load requirements.
• Surface cleaning should be performed with a soft damp cloth and neutral detergent. Avoid abrasive materials or solvent-based cleaners that may degrade the PVC layer.
• Perforated panels should be inspected periodically for dust accumulation in the holes to maintain designed acoustic performance.

Project References

Selected Project Supply Records:

• 26,000 m² of 8 mm perforated PVC laminated panels supplied for a Grade-A office tower in Southeast Asia. The system provided effective sound absorption in open-plan office areas while maintaining ease of access for maintenance.

• 14,500 m² of 7.8 mm plain-finish panels used in a mid-range hotel renovation project. The moisture-resistant surface performed reliably in bathroom corridors and high-humidity zones.

• 11,000 m² of 9 mm sand-texture panels installed in a regional hospital outpatient building, meeting requirements for cleanability and low dust emission in clinical environments.

Frequently Asked Questions

Q1. What are the recommended storage conditions?

A: Panels should be kept flat on level supports in a dry warehouse. Avoid direct sunlight, rain exposure, or stacking higher than 10 panels to prevent warping.

Q2. What payment and trade terms do you offer?

A: Standard payment is 30% T/T deposit with balance prior to shipment, or irrevocable L/C at sight. Trade terms include FOB, CFR and CIF.

Q3. What is the normal production lead time?

A: For standard specifications and colors, production lead time is typically 20–25 days after receipt of deposit. Custom surface patterns may require additional time.

Q4. Do you accept OEM or custom design orders?

A: Yes. We can produce according to client-specified dimensions, surface patterns, or colors, subject to minimum order quantity requirements.

Q5. Are product samples available?

A: Samples of standard items can be provided free of charge. The recipient is responsible for courier shipping costs.
